Crash-Optimized Composites Advance Automotive Designs

Ann R. Thryft

November 29, 2011

3 Min Read
Crash-Optimized Composites Advance Automotive Designs

The use of composites in cars is picking up pace. Both glass and fiber-based composites are slowly invading non-structural areas of commercial production vehicles and even the structural areas of specialty cars, where crash-optimized composites must be used.

Glass fiber reinforced materials are the major type of composites used in automotive manufacturing that replace metal, especially in high volume production. Several new crash-optimized glass fiber composites from BASF offer greater impact strength than previous materials in the same class. Designed initially for car body parts that protect pedestrians outside the vehicle, the automotive polyamides are part of BASF's glass fiber reinforced polyamide 6 family. The company introduced them at FAKUMA 2011, held at the Friedrichshafen Exhibition Centre in Friedrichshafen, Germany.


The use of carbon fiber reinforced composites is also growing, but curing times have been slow, among other problems. Most composites, especially those based on carbon fibers, are still found mainly in either non-structural components or secondary automotive structures, not in primary weight-bearing structures, at least in high-volume commercial manufacturing. Some designs of race cars and other specialty vehicles, however, have begun incorporating composites into major structures, such as the body. The DeLorean EV, for example, was redesigned to shed 200 pounds, and its body is now made of composites. So is the body of the Nuna6 solar-powered car.

The three grades of BASF's new polyamides include Ultramid B3ZG3 CR, reinforced with 15 percent glass fibers, and Ultramid B3ZG7 CR, reinforced with 35 percent glass fibers. The third grade, Ultramid B3ZG10 CR, is BASF's first impact-modified polyamide 6 that contains 50 percent glass fibers.

All three are specialized materials within the larger group of polyamide 6 compound formulations, and are designed to rapidly absorb large amounts of energy. They offer improved elasticity of up to 200 percent and increased stiffness of up to 50 percent, according to a press release.

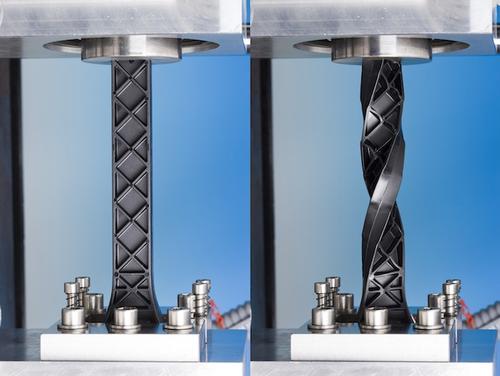

The three products were developed specifically to be used together. As a system, each offers greater or lesser softness or stiffness than the others, so that geometry, stiffness, and toughness can be traded off. During the development of all three materials, BASF created a bending and torsion test specimen to determine how much distortion the materials could endure. BASF's previous Ultramid CR material, Ultramid B3WG6, can be distorted without breaking by almost 150 degrees in static torsion tests. But the new grades can endure static distortion of up to 240 degrees without damage, highly unusual for most composite materials.

BASF debuted another automotive composite material debuted at FAKUMA 2011, Ultramid Endure D3G10. The non-crash optimized polyamide material for use inside the engine compartment contains 50 percent glass fibers and is capable of high stiffness at high temperatures. Resistant to heat aging at up to 220 degrees, it can replace metal in the charge air system.
