Company expects test solution to provide fastest signaling solution meeting PCIe 6.0 standards.

Spencer Chin

October 4, 2022

2 Min Read

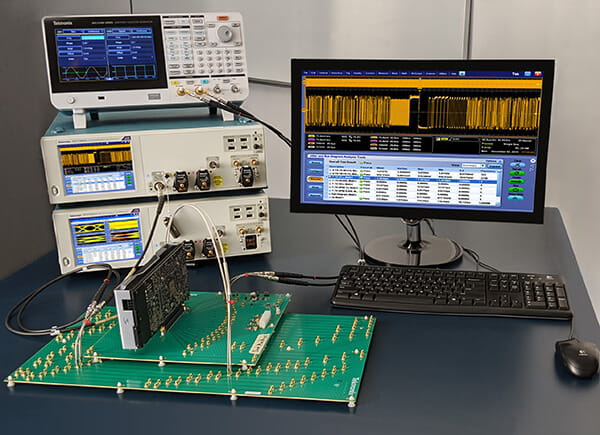

Tektronix has developed a PCIe® 6.0 transmitter and receiver test solution that provides fast test times and high-quality measurements, with an intuitive user interface.Image courtesy of Tektronix

The electronic industry’s insatiable need for high-speed networks is being fueled by an uptick in data-intensive applications such as AI (artificial intelligence), ML (machine learning), cloud, and data centers. To meet these needs, Tektronix, Inc., has collaborated with Anritsu Corporation, to unveil a PCIe® 6.0 Receiver Test Solution that provides cohesive PCIe 6.0 transmitter and receiver test set that delivers fast test times, high-quality measurements, and an intuitive user interface.

The test solution enables test engineers to more easily integrate the latest PCIe interface standard, 6.0, on their devices. PCIe receiver validation is considered challenging difficult due to the sensitivity of calibrating the stressed eye signal across a high loss channel. Tektronix's PCIe receiver test solutions help ensure that designs are thoroughly tested at the required bit error rate (BER) target. The intuitive step-by-step tools provide link training routines for the Anritsu MP1900A BERT to ensure the receiver is tested accurately.

The PCIe solution will enable backwards compatibility as ever-increasing data throughput needs place even more demands on testing requirements, according to David Bouse, Principal Technology Lead (PCI Express), at Tektronix, in an interview with Design News. “There is already talk about a PCI 7 spec,” Bouse said. “There is a doubling of bandwidth every three years.”

Related:Teledyne LeCroy Debuts PCI Express 5.0 Test Solution

The Tektronix PCIe 6.0 Base Rx Solution includes reportedly the fastest 64 GT/s (PAM4) Rx calibration in the industry. The test solution’s algorithms are designed to address the challenge of calibrating the transmitter's additional pre-cursor added to the 6.0 Base specification.

The Tektronix PAMJET DSP tool provides critical 64 GT/s jitter and noise measurements with advanced instrument noise compensation. This fully automated solution leverages the first-to-market 6.0 Base Tx solution techniques and enhances the capabilities to address receiver challenges at the latest data rate introduced by the PCI Special Interest Group (PCI-SIG®).

Intuitive User Experience

The TekRxTest automation software provides a single control panel with the power to manage a Tektronix oscilloscope and Anritsu BERT during receiver calibration. This intuitive software wizard guides users through short- and long-channel calibration steps, resulting in an accurate and repeatable calibration at 64 GT/s.

Building on the success of previous receiver test solutions, Tektronix and Anritsu started collaborating early for PCIe 6.0. In addition, electronics design and automation company Synopsys collaborated with Tektronix on early validation of their PCIe 6.0 DesignWare® IP, providing early-stage prototypes for Tektronix' partnership with Anritsu.

Related:Tektronix Rolls Out Mid-Range Scopes with Big HD Displays

The PCIe 6.0 (64 GT/s) automated test solution runs on the Tektronix DPO70000SX series real-time oscilloscope and the Anritsu MP1900A BERT
