Safety in a Non-Exploding Circuit

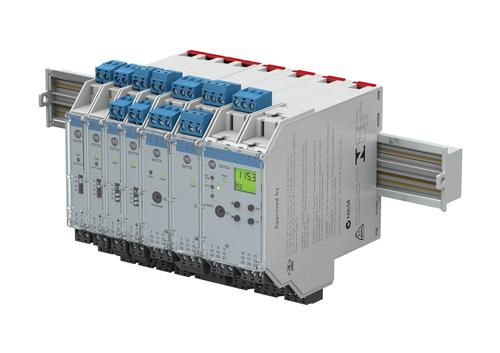

Rockwell Automationhas developed safety modules specifically designed to operate in hazardous environments. The Allen-Bradley Bulletin 937 intrinsic safety modules were designed to provide a signal interface bridge between hazardous locations and the control system by connecting intrinsically safe-rated equipment -- such as transmitters, solenoids, and proximity sensors -- with controls.

The modules were developed to help avoid dangerous short circuits in hazardous environments. An example of a problem that can occur is a short circuit that can start a fire in the coal mine gasses. In one instance, a miner triggered a short circuit (and explosion) when he touched a shovel to a bucket that was connected to a circuit that alerted those at the top of the mine that a bucket was full and needed to be pulled out. Investigators determined the explosion was due to the excess energy in the circuit.


Rockwell's goal for the modules is to put the safety where the problem originates. If the circuit is designed to operate below the ignition point, it solves the problem of explosion due to circuit ignition. "It's very common to see different safety techniques; one is explosion-proof containers. Yet equipment circuits are where safety really shines," Mason Khan, global product manager for signal interface at Rockwell Automation, told Design News. "The electrical energy is kept at the minimum ignition for each hazardous area. If you know the level that will ignite, and if you keep the circuits low enough, you know you're going to be safe."

MORE FROM DESIGN NEWS: Safety Integration & Small Electric Actuators

Integrated diagnostics in the safety modules help simplify maintenance. Users can switch out modules during ongoing operations, and the modules can be installed in systems rated up to SIL 3 for reliable planning and documentation. Users can configure the modules using DIP switches or Field Device Tool software, and mount them horizontally or vertically with no reduction in operation ratings.

The modules were designed so plant managers don't have to turn off the circuit to work on it. "That's an advantage. They don't have to shut down to work on the live circuit and make sure it's inherently safe," Kahn told us. "The time it takes to repair a circuit is important. In the past it took a while -- you had to shut down the circuits to open them."

MORE FROM DESIGN NEWS: Turning up the Heat: Considerations for High Temperature Applications

Also, if the problem is solved at the level of ignition, standard cable is sufficient. "You have the containment in the control circuit, so you don't have to use specialized cable. That's a cost benefit," he said.

The Allen-Bradley Bulletin 937 product family includes zener barriers, galvanic isolators, and galvanic converters. The intrinsic safety modules are available in a range of options that provide a wide range of functionality in hazardous location applications in industries such as oil and gas, chemical, and petrochemical.
