Machine tooling technology in automation systems has taken a step forward with a slew of announcements this week from Siemens. The company has added significantly to its Sinumerik automation system, particularly in the area of machine technology. Also part of the rollout were energy-saving tools to help manufacturers save dollars and meet environmental regulations.
Turning to the specific, Siemens says it has improved the multitasking capabilities for the Sinumerik 840D sl CNC (computer numerical control) automation system. The system can now simultaneously control a number of machine technologies in metalworking, such as turning, drilling, milling, grinding, laser machining, nibbing, and punching. The tools can also be used with multitasking machines such as turn-mill or mill-turn centers.

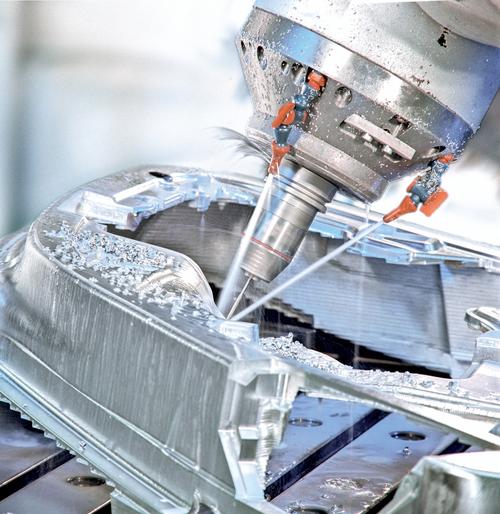

The Sinumerik automation system integrates technology for three- and five-axis machine tools.
The machine functionality is designed to be simple to configure for different machine kinematics and permits production. The Sinumerik Operate user control board has also been improved with animated elements, including 3D display. Programming has been extended to include milling and turning tools in a single user interface.
The operator panel now has touch-screen capabilities and wide LED (light-emitting diode) screens that allow the operator to clearly visualize every key actuation, no matter what angle of vision. An integrated key lock helps safeguard against operating errors.
Energy efficiency improvements
Siemens also added energy efficiency tools to its machine control technology. With the Sinumerik Ctrl-Energy, the company has opened up a range of tools for energy-efficient operation of machine tools, including drive systems and motors, CNC, and drive functions. The technology was designed to cover every aspect of the machineís lifecycle, starting from machine design and engineering through machine operation and partial or complete retrofit.
From the control board, the automation system can provide a fast evaluation of the machine toolís energy consumption and also manage energy consumption during machine downtime. The control system can determine the energy consumption of both the drive system and the entire machine. This helps the user analyze the amount of energy that goes into the machining of each work piece as the basis for energy improvements.

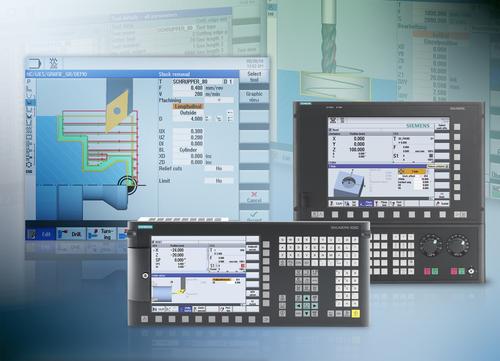

The Sinumerik operator interface offers animation, 3D, and intuitive programming tools.
As well, Sinumerik technology now offers the ability to integrate machine and production data into the companyís IT system. This is designed to give an overview of the entire production process, down to the shop level. This brings transparency into metalworking operations, which can be used to uncover weak spots, eliminate them, and develop an effective continual improvement process.
The IT integrated production process allows managers, machine operators, programmers, maintenance engineers, and machine tool builders to be connected with each other and integrated into the overall system. The integration concentrates IT-related functions into a single process suite, using six modules that bring together all the aspects of the machine tool process.
Machine tool performance enhancements
Siemens has also added tools to enhance machine tool productivity. The control system combines a number of user interfaces to give control engineers a consistent view of machine tools. The interface contains animated elements designed to support intuitive operation and programming. Engineers can use the interface to improve quality and increase the productivity of machine tools.
A 3D display on the control screen gives users a graphical view of the machine activity to help improve efficiencies. This feature was developed for applications in industries such as automotive and aerospace, power generation, medical part production, shopfloor manufacturing, and tool- and mold-making.
