The Airbus
XWB - now under production in Germany - will feature the largest integrated
component ever to be built by Airbus from carbon fiber-reinforced plastic
(CFRP).
The upper
wing shell, which measures 105 ft by almost 20 ft, is being built in Stade,
Germany, using advanced composite production processes.
"The A350
XWB sets new benchmarks for the aviation industry and passengers," says Airbus
CEO Tom Enders. "Advanced materials make the new Airbus the most economical and
environmentally friendly aircraft in its class."
The new
design is the Airbus response to the tremendous reception to the
composite-bodied Boeing 787 Dreamliner. Airbus claims that its version will
be more fuel-efficient and will feature an operating cost that is up to 8
percent lower than the Boeing 787.
 |
Automated
tape-laying technology will be used for the first time for the carbon fiber, and
for the lightning strike protection and fiberglass components. The wing shell
will then be polymerized in an autoclave. Airbus says the high-tech oven is one
of the largest facilities of its kind in the world and can accommodate two wing
shells simultaneously.
In addition
to laying the wing skin panels, the plant will also produce stringers,
longitudinal stiffeners used in wing panels. For the first time, Airbus has set
up a flow-line production system with an automated conveyor system that
measures one-and-a-half football fields in length to produce these components.
Other
production innovations at the Stade hanger include a new quality control system
that permits inspection of the external and internal surfaces of CFRP
components of that size simultaneously. Waterjet technology is used for edge
trimming.

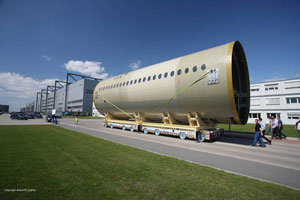

The XWB is also the first Airbus plane to
use CFRP fuselage shells, which will also be built in the Stade facility.
Slightly more than half (53 percent) of the airframe will be made of carbon
fiber composites
About 100
employees will work in A350 XWB production by the end this year. Another 400
will be added when production reaches full capacity. Final assembly of the
A350-900 is scheduled to start in 2011, with first delivery scheduled for 2013.
The Stade
plant has a dedicated combined heat and power unit that generates electricity
and heat for the hangars. Emissions are used as inert gas for the autoclave.
The A350 XWB
is a new family of widebody airliners (A350-800, A350-900 and A350-1000) for
which Airbus says it has 528 confirmed orders.
The
materials' breakdown in the A350 XWB is
53 percent composites, 19 percent Al/Al-Li, 14 percent titanium, 6
percent steel and 8 percent other materials. In comparison, the Dreamliner
consists of 50 percent composites, 20 percent aluminum, 15 percent titanium, 10
percent steel and 5 percent other materials.
One
important difference is that the Dreamliner is being built by a global supply
chain, while critical CFRP components of the A350 XWB are built primarily in
Germany and the UK. The extended supply chain for the 787 is being blamed for
some of its extensive delays. In a nod to the tremendous potential of the
Chinese market, Airbus announced that two Chinese manufacturers will supply 5
percent of the parts the A350 aircraft,
Airbus has contracted
with BMW to develop an interior concept for the A350.
